What Is Reed–Solomon Error Correction?

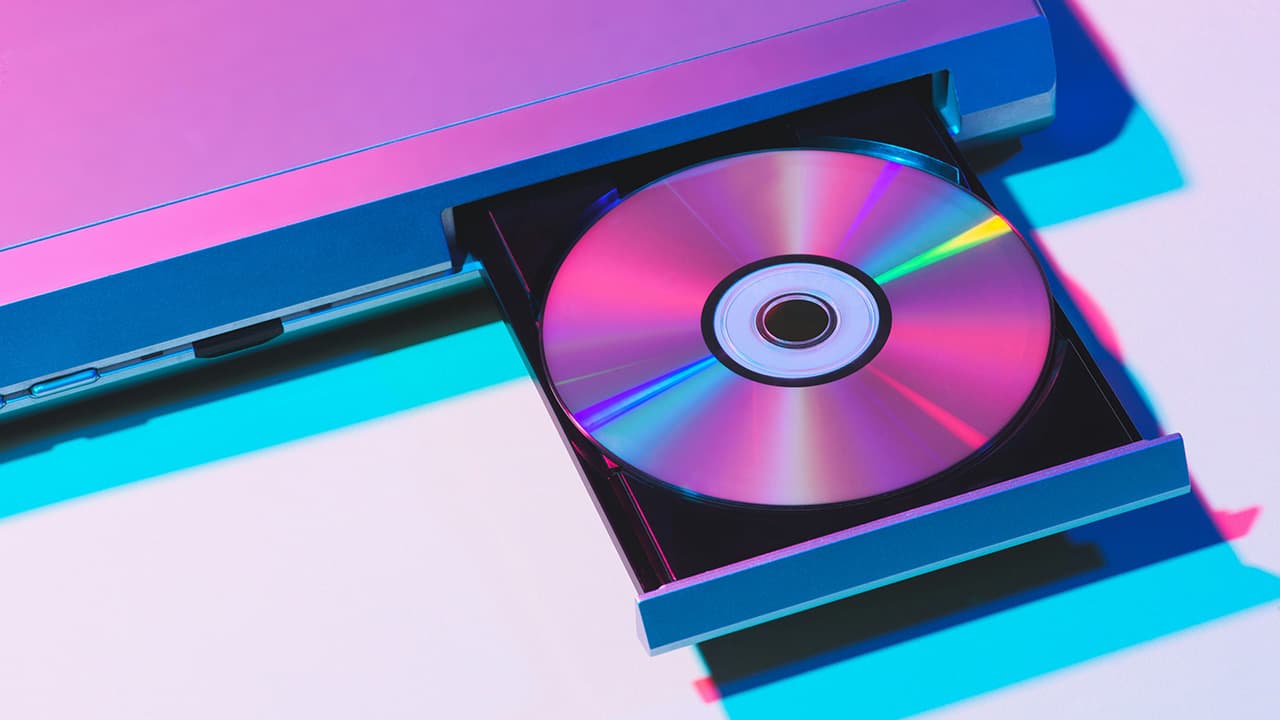

When you scan a scratched CD, download a file over a weak signal, or read a QR code with part of it missing, something remarkable often happens: the data still comes back perfectly.
One of the main reasons this works is a technique called Reed–Solomon error correction.
Reed–Solomon (RS) codes don’t just detect errors. They are designed to reconstruct lost information, even when entire chunks are wrong or missing.
Why is it called “Reed–Solomon”?
Reed–Solomon codes are named after their inventors, Irving S. Reed and Gustave Solomon. They introduced the method in a 1960 paper titled “Polynomial Codes Over Certain Finite Fields”.
At the time, most practical error-correcting codes worked at the bit level and were limited in how many errors they could fix. Reed and Solomon’s idea was different and more powerful: represent blocks of data as polynomials over finite fields and protect them by sending extra algebraically related symbols.
Their construction turned out to have an extraordinary property: for a given block length and number of data symbols, no other code can have a larger guaranteed error-correcting capability. In coding-theory language, Reed–Solomon codes are maximum-distance separable (MDS).
Although the theory appeared in 1960, Reed–Solomon codes were not widely used at first. Computers and digital electronics were too slow and expensive to perform finite-field arithmetic efficiently. This changed in the late 1970s and 1980s, when faster hardware and better decoding algorithms made RS codes practical. They were soon adopted in deep-space communication, optical storage, and eventually consumer technologies like CDs, DVDs, and QR codes.
Why error correction matters
Any real-world storage or communication system introduces errors. Bits flip. Bytes vanish. Blocks get smeared by noise or scratches.
Basic methods like parity bits and checksums can tell you something went wrong, but they usually can’t fix it. Reed–Solomon goes further. It adds carefully structured redundancy that lets the receiver recover the original message, not just reject it.
The one-sentence idea
Reed–Solomon treats your data as a polynomial over a finite field and sends extra values of that polynomial, so the original data can be reconstructed even if many of those values are damaged or missing.
Why “symbols” instead of bits
Reed–Solomon normally works on symbols (most often bytes), not individual bits. Internally, each symbol is an element of a finite field, commonly:
$$ \mathrm{GF}(2^8) $$
This design makes RS codes extremely good at handling burst errors—situations where many neighboring bits are destroyed together, such as a scratch on a disc, a blurred barcode, or a brief signal fade.
How Reed–Solomon adds protection
Suppose you start with k data symbols. Reed–Solomon generates r = n − k extra symbols and sends n symbols total.
Instead of copying data, RS builds redundancy using algebra.
Conceptually:
- The data symbols are treated as coefficients of a polynomial
- That polynomial is evaluated at several known points
- Those values are the transmitted symbols
Mathematically, the message becomes
$$ m(x) = m_0 + m_1 x + \dots + m_{k-1} x^{k-1} $$
and the transmitted symbols are
$$ c_i = m(\alpha_i) $$
for distinct field elements $\alpha_i$.
Why this makes recovery possible
A polynomial of degree (< k) is uniquely determined by any (k) correct points.
So if enough transmitted symbols survive intact, the receiver can interpolate the polynomial and recover all original symbols—including the ones that were completely destroyed.
Exactly how much damage can be fixed
With ( r = n - k ) parity symbols, Reed–Solomon can recover from any combination of:
$$ 2(\text{errors}) + (\text{erasures}) \le r $$
- Errors: wrong symbols at unknown locations
- Erasures: missing symbols at known locations
Special cases:
- Up to $\lfloor r/2 \rfloor$ random symbol errors
- Up to $r$ erasures
This is the best possible performance for any block code of this size.
What decoding actually does
When corrupted data arrives, the decoder:
- measures inconsistencies (syndromes)
- constructs an error-locator polynomial
- finds where the data is wrong
- computes how wrong it is
- repairs the block
Under the hood this involves solving a structured polynomial equation (the “key equation”) using algorithms such as Berlekamp–Massey or the extended Euclidean algorithm.
A useful mental picture
Reed–Solomon doesn’t protect the data points individually. It protects the rule that connects them.
As long as enough points still obey that rule, the whole message can be rebuilt.
Where you encounter Reed–Solomon
Because it excels at recovering from missing chunks and burst damage, RS codes appear in:
- CDs, DVDs, and Blu-ray discs
- QR codes and 2D barcodes
- Satellite and deep-space communication
- Distributed storage and RAID systems
Strengths and trade-offs
Strengths
- Optimal error-correction capability
- Excellent for erasures and burst errors
- Naturally fits byte-oriented data
Trade-offs
- More computation than simple parity or Hamming codes
- Block-based rather than continuous
- Overkill for very small, random bit noise
In short
Reed–Solomon error correction represents data as a polynomial over a finite field and sends extra evaluations of that polynomial. Because a low-degree polynomial is fully determined by a limited number of correct points, the original message can be reconstructed even after substantial corruption. This blend of algebra, geometry, and history is why Reed–Solomon remains one of the most important and widely used error-correcting codes.
